LORA 01
Rs. 295.00
Skip to product information
LORA 01
Rs. 295.00
Need a larger quantity? Get a bulk quote.

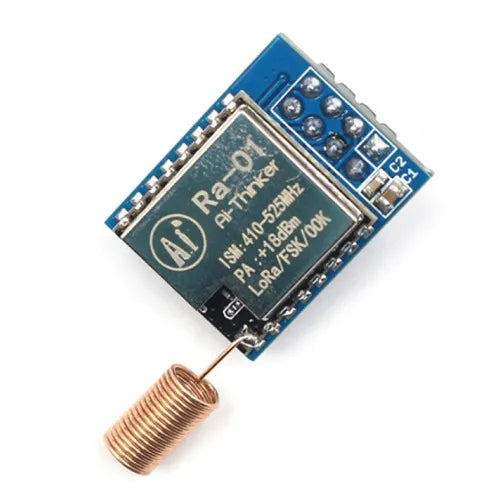

The Ai-Thinker LoRa Ra-01 is a 410–525MHz SX1278-based RF transceiver module with LoRa spread spectrum modulation. SPI interface, metal shielding, SMD-16 castellated package for easy PCB integration. Delivers up to +18dBm TX power and -148dBm receiver sensitivity for long-range, low-power wireless communication. Supports LoRa, FSK, GFSK, MSK, GMSK, and OOK modulation modes.
Specifications:
- Model: LoRa Ra-01
- Chip: SX1278
- Frequency: 410–525MHz
- TX Power: +18 ± 1dBm (max)
- RX Sensitivity: -148dBm
- RSSI Range: 127dB
- Modulation: LoRa, FSK, GFSK, MSK, GMSK, OOK
- Interface: Half-duplex SPI
- Bit Rate: up to 300kbps
- Supply Voltage: 2.5–3.7V
- Package: SMD-16 (castellated half-hole)
- Operating Temperature: -10 to +85°C
Applications:
- Automated meter reading (AMR)
- Home and building automation
- Industrial monitoring and control
- Long-range irrigation and environmental sensing
- Wireless alarm and security systems
