MAX232 TO TTL SERIAL
Rs. 61.20

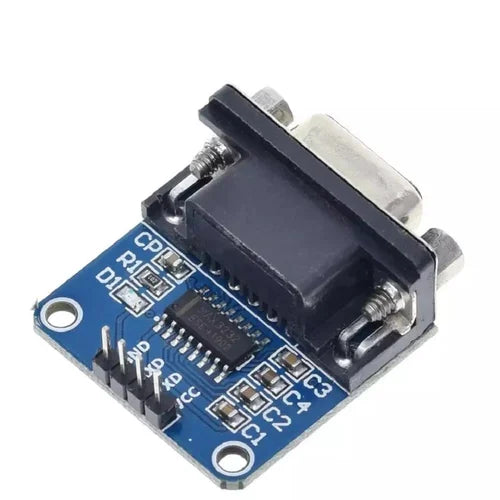

The MAX3232 RS232-to-TTL Module converts RS232 serial signals to TTL logic levels and vice versa. DB9 female connector on the RS232 side; 4-pin header (TX, RX, VCC, GND) on the TTL side. Compatible with all UART-based microcontrollers (AVR, PIC, STM32, etc.). IC may be labelled MAX3232 or SP3232 — functionally identical.
Specifications:
- IC: MAX3232 / SP3232
- Supply Voltage: 3.3–5V
- Communication: RS232 ↔ TTL (UART)
- RS232 Connector: DB9 female
- TTL Connector: 4-pin header (TX, RX, VCC, GND)
- Max Data Rate: 250kbps
- Operating Temperature: -40 to +85°C
Applications:
- MCU serial port to PC COM port interface
- Programming STC, NXP, Renesas, STM32 MCUs
- GPS, router, and set-top box firmware flashing
- Industrial RS232 device interfacing
