MAX31865 RTD-TO-DIGITAL CONVERTER
Rs. 342.20
Need a larger quantity? Get a bulk quote.

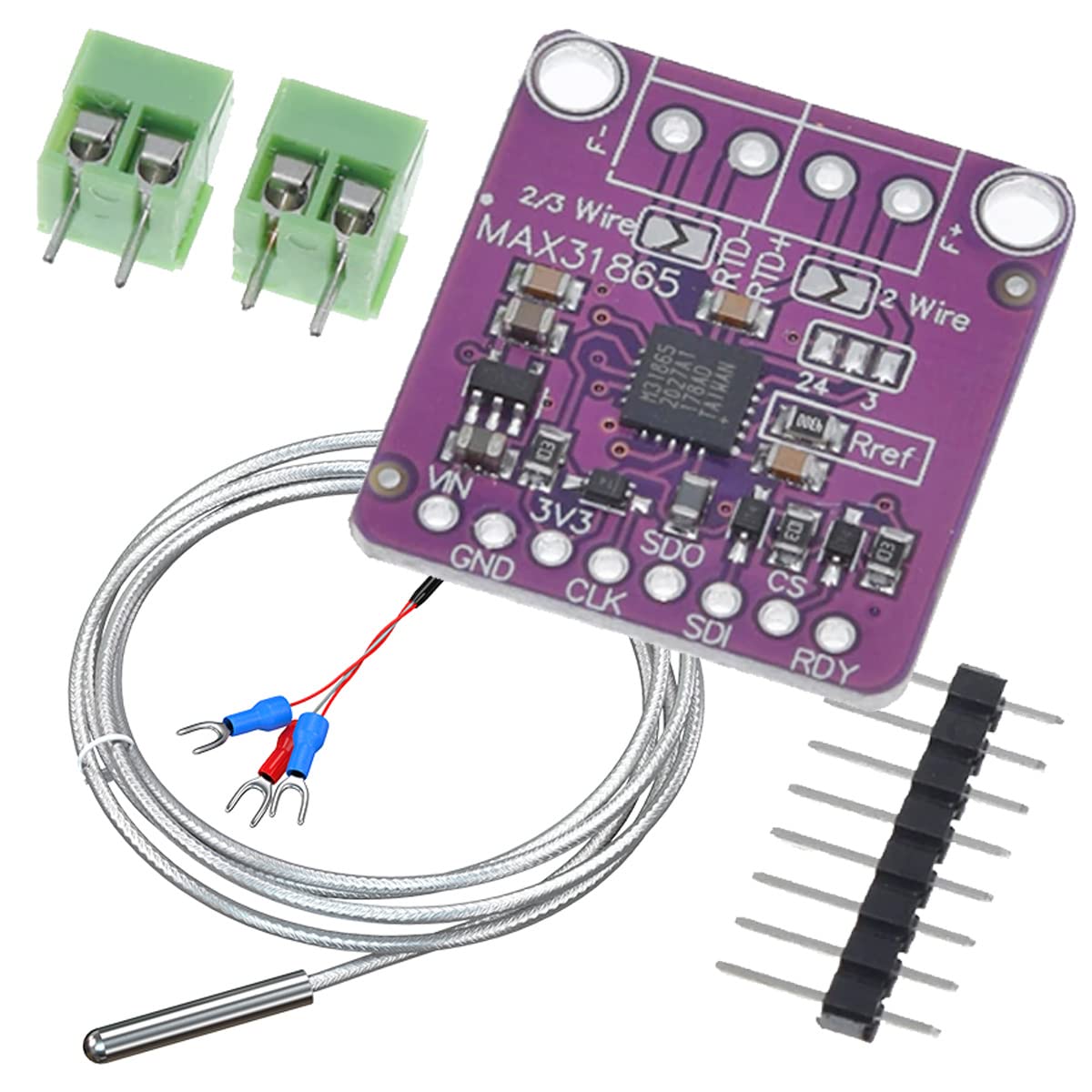

The MAX31865 RTD-to-Digital Converter module interfaces PT100/PT1000 platinum resistance temperature detectors (RTDs) with microcontrollers via SPI. A precision delta-sigma ADC converts the RTD-to-reference resistance ratio to digital form. Built-in fault detection for open and short-circuit RTD/cable conditions. Overvoltage protection up to 45V on inputs.
Specifications:
- IC: MAX31865
- Compatible RTDs: PT100, PT1000
- Interface: SPI
- Supply Voltage: 3–5V
- Supply Current: 10mA
- Input Overvoltage Protection: ±45V
- Dimensions: 25 × 28mm
Features:
- Precision delta-sigma ADC for high-accuracy temperature reading
- Programmable open/short fault detection
- External reference resistor sets RTD sensitivity
Applications:
- Industrial process temperature measurement
- Medical equipment temperature monitoring
- Precision lab instrumentation
- Arduino/ESP32 PT100 temperature logging
