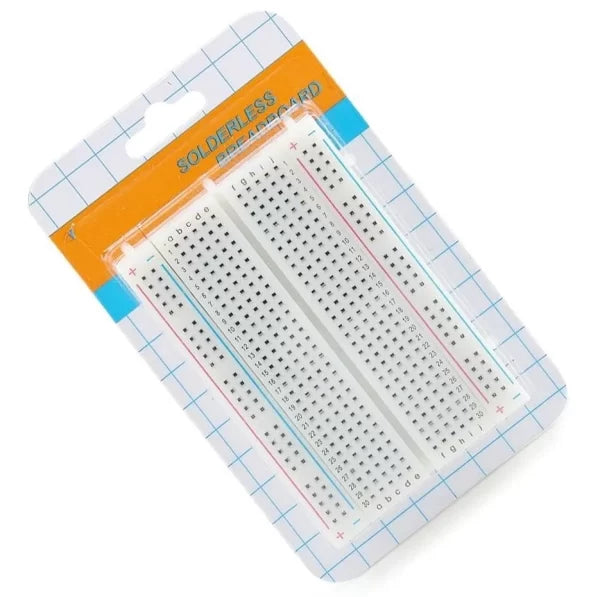

MB102 400-Point Mini Breadboard

The MB102 400-Point Mini Breadboard is a compact solderless breadboard ideal for small prototyping projects. It features 400 tie-points arranged in a standard layout with power rails on both sides, and is fully compatible with the MB102 Breadboard Power Supply Module.

Specifications

• Total Tie Points: 400
• Terminal Strip: 2 × 30 rows (columns A–E and F–J)
• Power Rails: 2 × 25 holes per side (positive and negative)
• Pitch: 2.54 mm standard
• Compatible Wire Gauge: 20–29 AWG
• Material: ABS plastic body, nickel-plated spring steel contacts
• Dimensions: 83 × 55 × 9 mm
• Weight: ~40 g
• Colour: White
• MB102 Power Supply: Compatible (plug-in fit)

Applications

Arduino, ESP32, Raspberry Pi prototyping, electronics education, sensor circuit testing, hobbyist projects.
