MCP2515

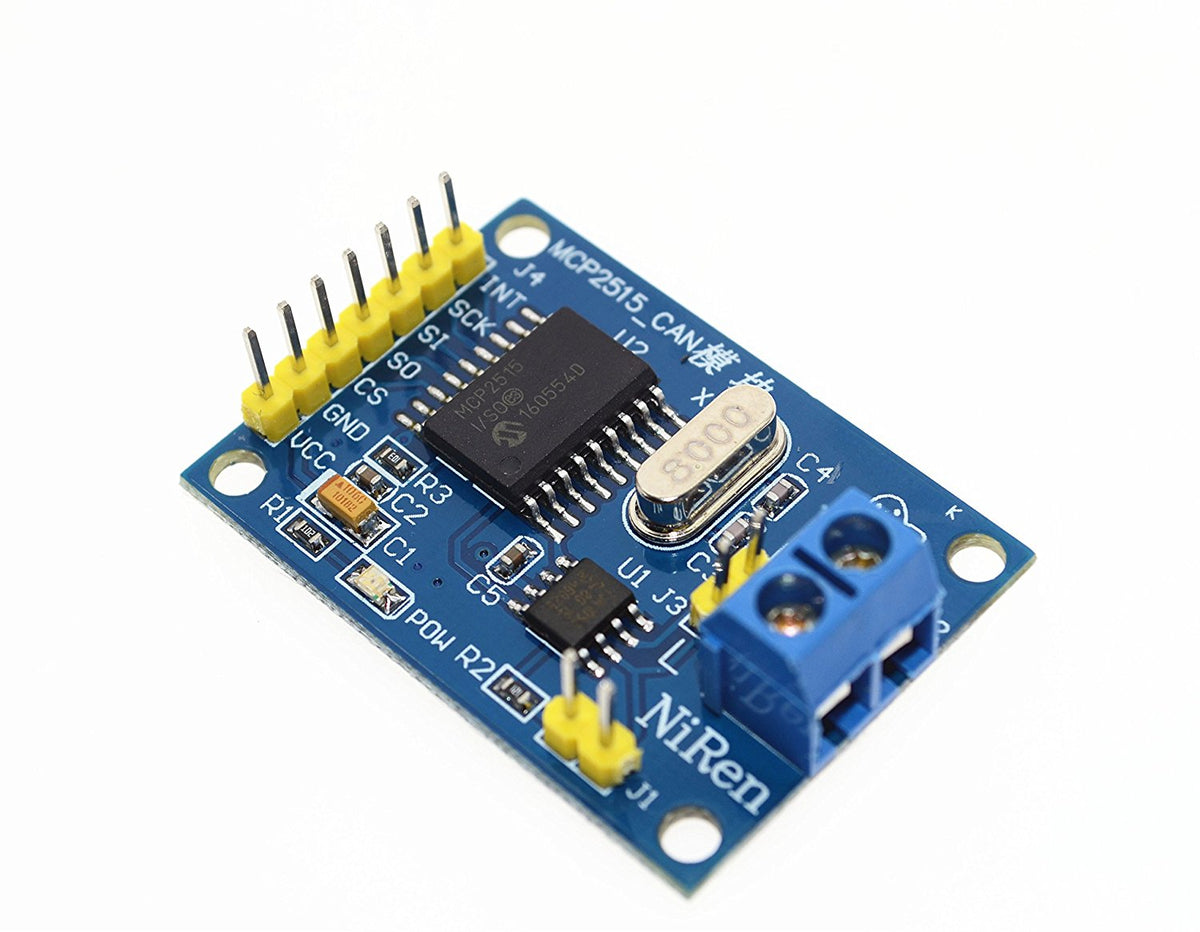

The MCP2515 CAN Bus Module uses the MCP2515 CAN controller and TJA1050 transceiver to add CAN V2.0B communication to any SPI-capable microcontroller (Arduino, STM32, etc.). Supports standard, extended, and remote frames. Up to 1Mbps. Selectable 120Ω termination resistor (J1 jumper). Dual CAN output: KF301 screw terminal (J2) and pin header (J3). 8MHz crystal oscillator.

Pin Configuration (SPI side):

• VCC — 5V
• GND — Ground
• CS — SPI chip select (active low)
• SO (MISO) — SPI data out
• SI (MOSI) — SPI data in
• SCLK — SPI clock
• INT — Interrupt output

Specifications:

• CAN Controller: MCP2515
• CAN Transceiver: TJA1050
• CAN Standard: V2.0B (standard + extended frames)
• Max Bus Speed: 1Mbps
• Supply Voltage: 5V
• Working Current: 5mA typical, 1µA standby
• Crystal: 8MHz
• Terminal Resistance: 120Ω (selectable via J1)
• Mounting holes: 23 × 38mm spacing

Applications:

• Arduino CAN bus communication
• Automotive OBD-II interfacing
• Industrial CAN network nodes
• Multi-MCU CAN bus expansion
