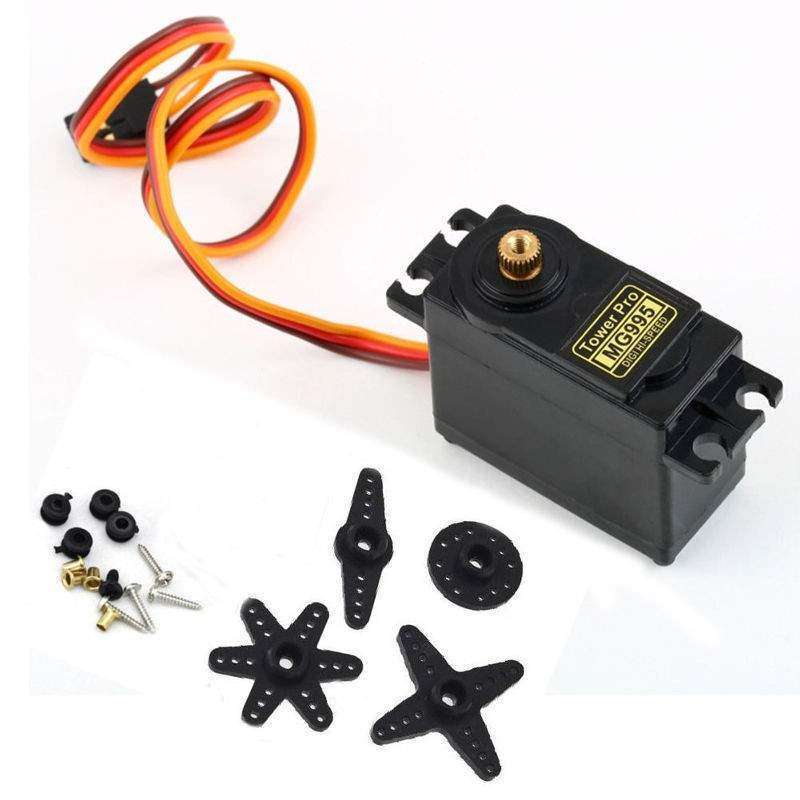

MG995 FULL METAL 360 DEGREE
Rs. 289.10
Skip to product information
MG995 FULL METAL 360 DEGREE
Rs. 289.10
Need a larger quantity? Get a bulk quote.
The TowerPro MG996R is an upgraded MG995 with continuous 360° rotation in both directions. Redesigned PCB and IC for improved accuracy and centering. Double ball-bearing design for shock resistance. All-metal gears with stall torque of 9.4–11 kg·cm. JR plug compatible with Futaba, Hitec, Sanwa, and GWS receivers. Ideal for robotics drives and camera sliders.
Wire Colours:
- Red — VCC (positive)
- Brown — GND (negative)
- Orange — PWM signal
Specifications:
- Model: MG996R
- Rotation: Continuous 360°
- Supply Voltage: 4.8–7.2V
- Stall Torque: 9.4 kg·cm @ 4.8V / 11 kg·cm @ 6V
- Speed: 0.17s/60° @ 4.8V / 0.14s/60° @ 6V
- Running Current: 500–900mA @ 6V
- Stall Current: 2.5A @ 6V
- Dead Band: 5µs
- Gear: All metal
- Weight: 55g
- Dimensions: 40.7 × 19.7 × 42.9mm
- Cable Length: 300mm (heavy duty)
- Operating Temperature: 0 to +55°C
Applications:
- Robotics drive wheels and continuous rotation mechanisms
- Camera slider and pan systems
- RC vehicle steering and drive
