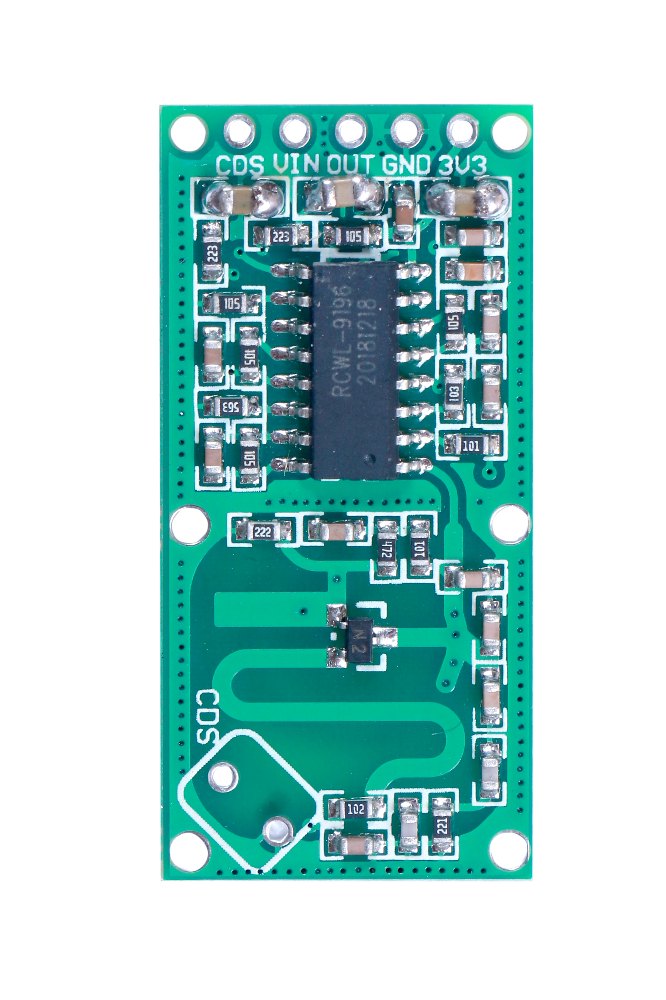

MICROWAVE SENSOR RCWL-0516
Rs. 40.80
The RCWL-0516 is a microwave Doppler radar motion sensor module. Unlike PIR sensors, it detects moving objects through walls and non-metallic materials. TTL output (OUT) goes HIGH (3.3V) for 2–3 seconds on detection, then returns LOW. Wide supply range 4–28V. Built-in 3.3V 100mA regulated output. Note: RCWL-9196 markings on the IC are functionally identical to RCWL-0516.
Pin Configuration:
- VIN — 4–28V DC input
- GND — Ground
- OUT — Motion detected: HIGH (3.3V) / Idle: LOW (0V)
- 3V3 — Regulated 3.3V output (100mA max)
- CDS — Sensor disable (pull LOW to disable)
Specifications:
- Sensor: RCWL-9196 Doppler radar IC
- Supply: 4–28V DC
- Operating Current: 3mA
- TX Power: 20mW typical, 30mW max
- Detection Range: 1–2 metres
- Output: 3.2–3.4V HIGH (repeat trigger)
- Operating Temperature: -20 to +80°C
Applications:
- Security lights and intruder alarms
- Through-wall motion detection
- Automatic door and light control
- Arduino/MCU presence detection projects
