MLX90614
Rs. 525.10
Need a larger quantity? Get a bulk quote.

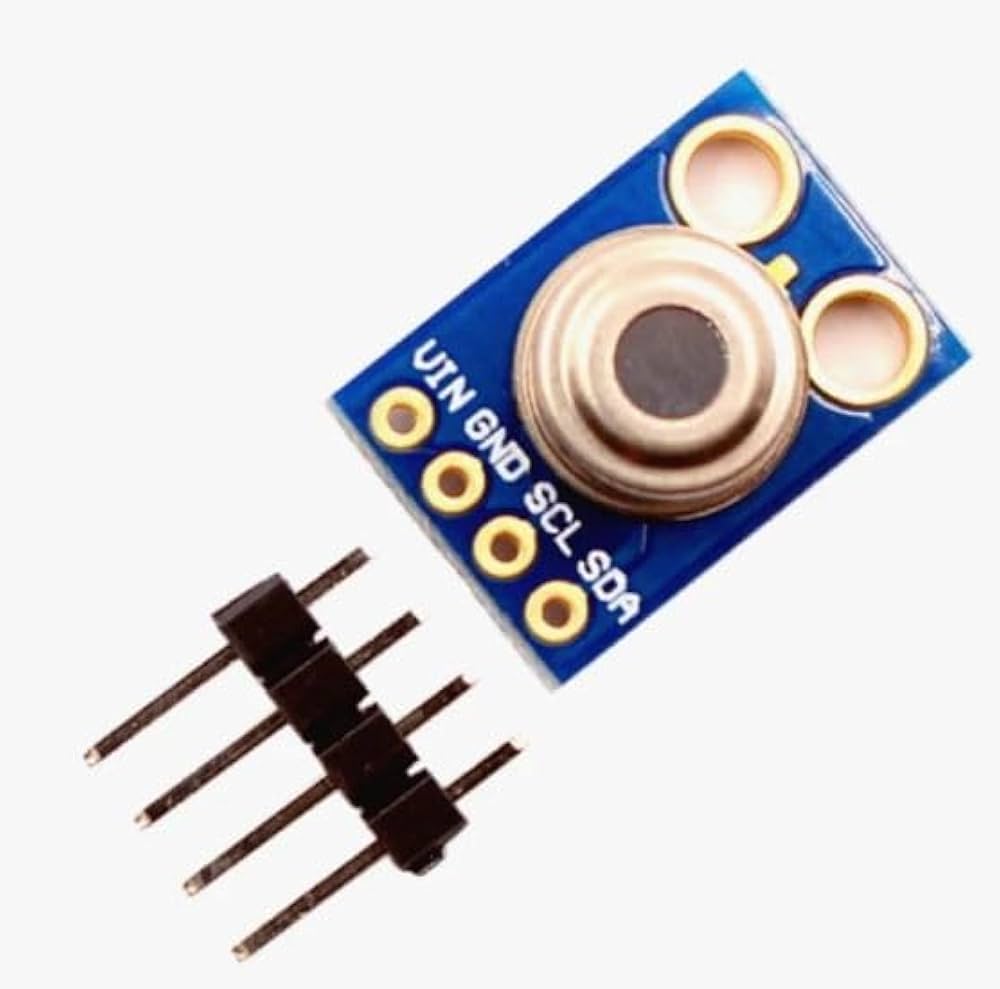

The MLX90614ESF (GY-906) is a non-contact infrared thermometer module. Integrates a thermopile IR detector and signal-conditioning ASIC in a TO-39 package. 17-bit ADC with DSP for 0.14°C resolution. Dual output: I2C and 10-bit PWM (-20 to +120°C range). Object temperature range up to +380°C. Compatible with Arduino and all 3.3/5V MCUs.
Specifications:
- Sensor: MLX90614ESF
- Supply Voltage: 3.3–5V
- Current: 2mA
- Interface: I2C + PWM
- Resolution: 0.14°C
- ADC: 17-bit
- Ambient Temperature Range: -40 to +125°C
- Object Temperature Range: -70 to +380°C
- PWM Range: -20 to +120°C (10-bit)
Applications:
- Non-contact human body temperature measurement
- Industrial surface temperature monitoring
- HVAC and smart thermostat systems
- Arduino/ESP32 IR thermometer projects
