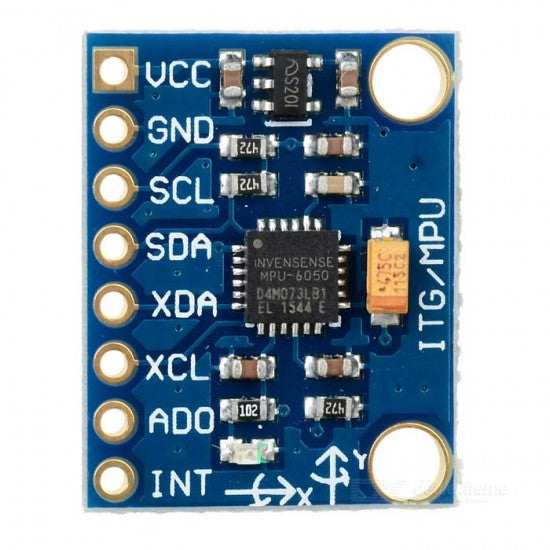

MPU6050 TRIPLE AXIS ACCELEROMETER
Rs. 147.50
Need a larger quantity? Get a bulk quote.
The MPU-6050 module combines a 3-axis gyroscope and 3-axis accelerometer on a single chip with an onboard Digital Motion Processor (DMP) for 6/9-axis MotionFusion. 16-bit ADC for all axes. I2C interface (address selectable via AD0). Outputs rotation matrix, quaternion, Euler angles, or raw data. Includes onboard temperature sensor and run-time bias/calibration algorithms.
Specifications:
- IC: MPU-6050
- Interface: I2C (I2C address selectable via AD0)
- Supply Voltage: 3–5V
- Gyroscope Range: ±250 / ±500 / ±1000 / ±2000°/s (selectable)
- Accelerometer Range: ±2 / ±4 / ±8 / ±16g (selectable)
- ADC: 16-bit for all axes
- Sampling Rate: 8kHz
- DMP: Yes (onboard MotionFusion processing)
- Onboard Temperature Sensor: Yes
Applications:
- Drone and UAV flight stabilisation
- Robot balance and motion control
- Wearable gesture recognition
- IMU for navigation and orientation systems
