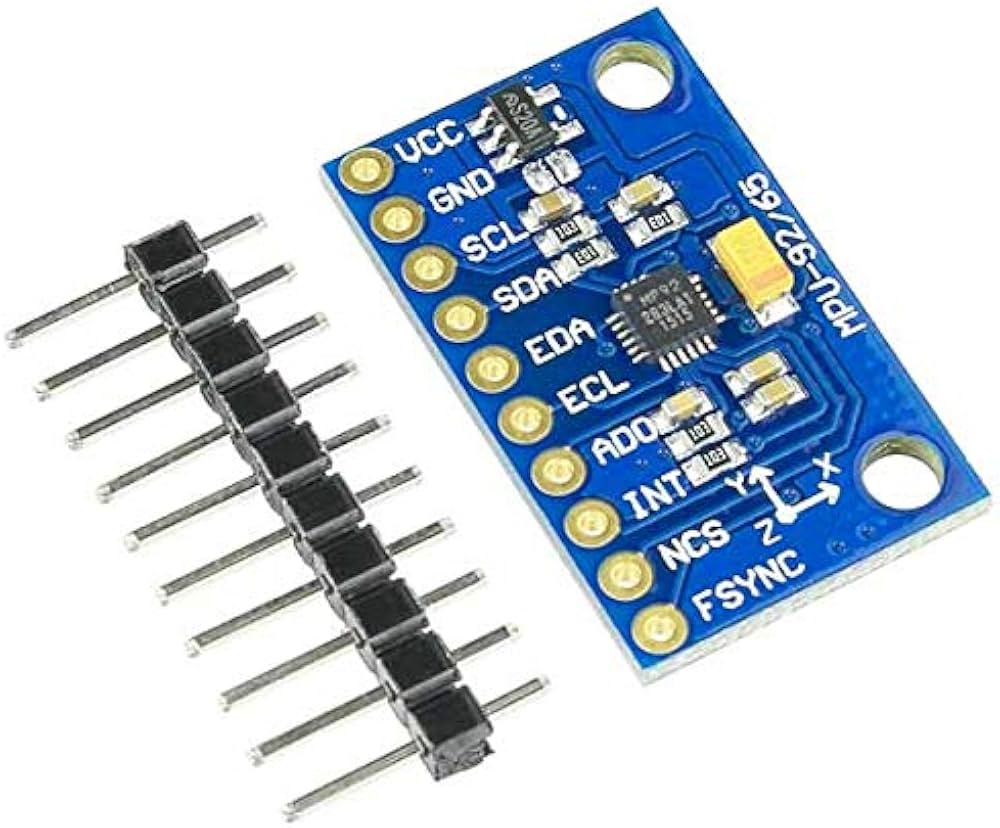

MPU9250(GYRO ACCELEROMETER MAGNETOMETER)
Rs. 476.00
The MPU-9250 is a 9-DOF IMU module combining a 3-axis gyroscope, 3-axis accelerometer (MPU-9250 die), and 3-axis magnetometer (AK8963 die) with an onboard DMP for MotionFusion. I2C interface (default address 0x68, 0x69 if AD0 high). Onboard 3.3V LDO regulator allows 5V supply from Arduino. Pull-up resistors on SDA/SCL/nCS; pull-downs on FSYNC/AD0. Onboard power indicator LED. ENIG PCB.
Specifications:
- ICs: MPU-9250 + AK8963
- DOF: 9 (accel + gyro + magnetometer)
- Interface: I2C (address 0x68 / 0x69)
- Supply Voltage: 3.3V or 5V (onboard regulator)
- Gyroscope Range: ±250 / ±500 / ±1000 / ±2000°/s
- Accelerometer Range: ±2 / ±4 / ±8 / ±16g
- Magnetometer Range: ±4800µT
- Onboard Temperature Sensor: Yes
Applications:
- Drone, FPV, and RC flight stabilisation
- GPS-aided navigation systems
- VR/AR motion input devices
- Vibration monitoring and free-fall detection
- Robot orientation and balance control
