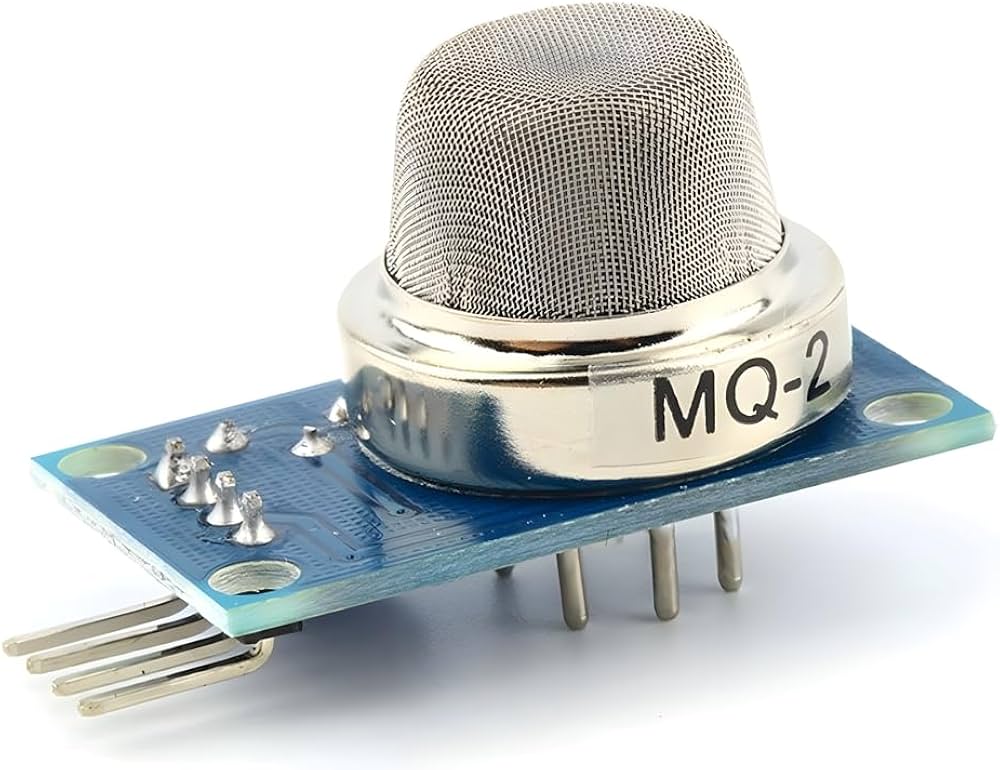

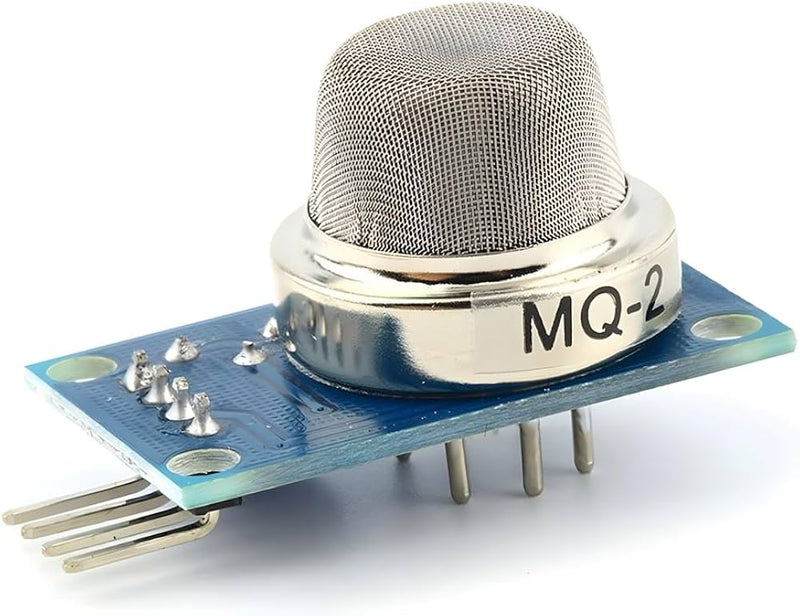

MQ2 GAS SENSOR MODULE (LPG, PROPANE, HYDROGEN)
Rs. 122.40
Skip to product information
MQ2 GAS SENSOR MODULE (LPG, PROPANE, HYDROGEN)
Rs. 122.40
The MQ2 Gas Sensor detects combustible and flammable gases including LPG, propane, methane, hydrogen, isobutane, alcohol, and smoke. SnO₂ sensing element — conductivity increases with gas concentration. Fast response (<10s). Analog voltage output; digital TTL output (0 or 5V) via onboard comparator. Sensitivity adjustable via potentiometer. Requires 20-second warm-up on power-on.
Specifications:
- Target Gases: LPG, propane, methane, hydrogen, isobutane, alcohol, smoke
- Detection Range: 200–10000ppm
- Supply Voltage: 5V
- Digital Output: 0V or 5V (TTL)
- Response Time: <10s
- Preheat Time: 20s
- Sensitivity: Adjustable via potentiometer
Applications:
- Home and industrial gas leak detection
- LPG / methane alarm systems
- Fire and safety detection
- Arduino/ESP32 gas sensing projects
