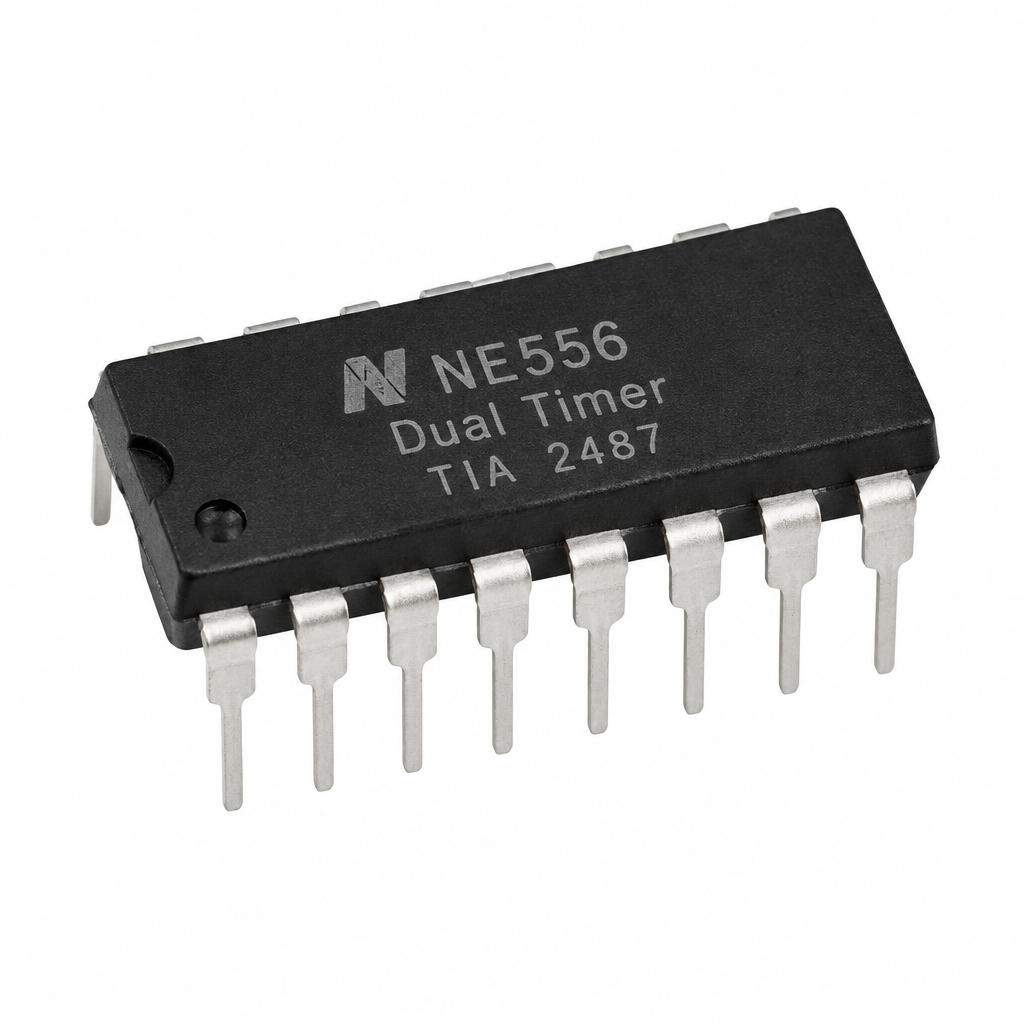

NE556 Dual Timer IC DIP-14 (Min 5 Pcs)

The NE556 is a dual timer IC containing two independent NE555 timers in a single DIP-14 package. Ideal for applications requiring two timing circuits with a shared power supply — saves board space compared to two discrete NE555s. Sold in a minimum of 5 pieces.

Specifications

• Type: Dual Timer IC (2 × NE555 equivalent)
• Supply Voltage (VCC): 4.5V to 15V
• Output Current: 200mA source/sink per timer
• Timing Range: Microseconds to hours
• Operating Modes: Astable, Monostable, Bistable (each timer)
• Package: DIP-14

Applications

Dual oscillator, sequential timer, PWM + delay circuit, two-tone alarm, missing pulse detector pair, independent clock generators, space-saving alternative to two NE555s on a PCB.
