NEO6M

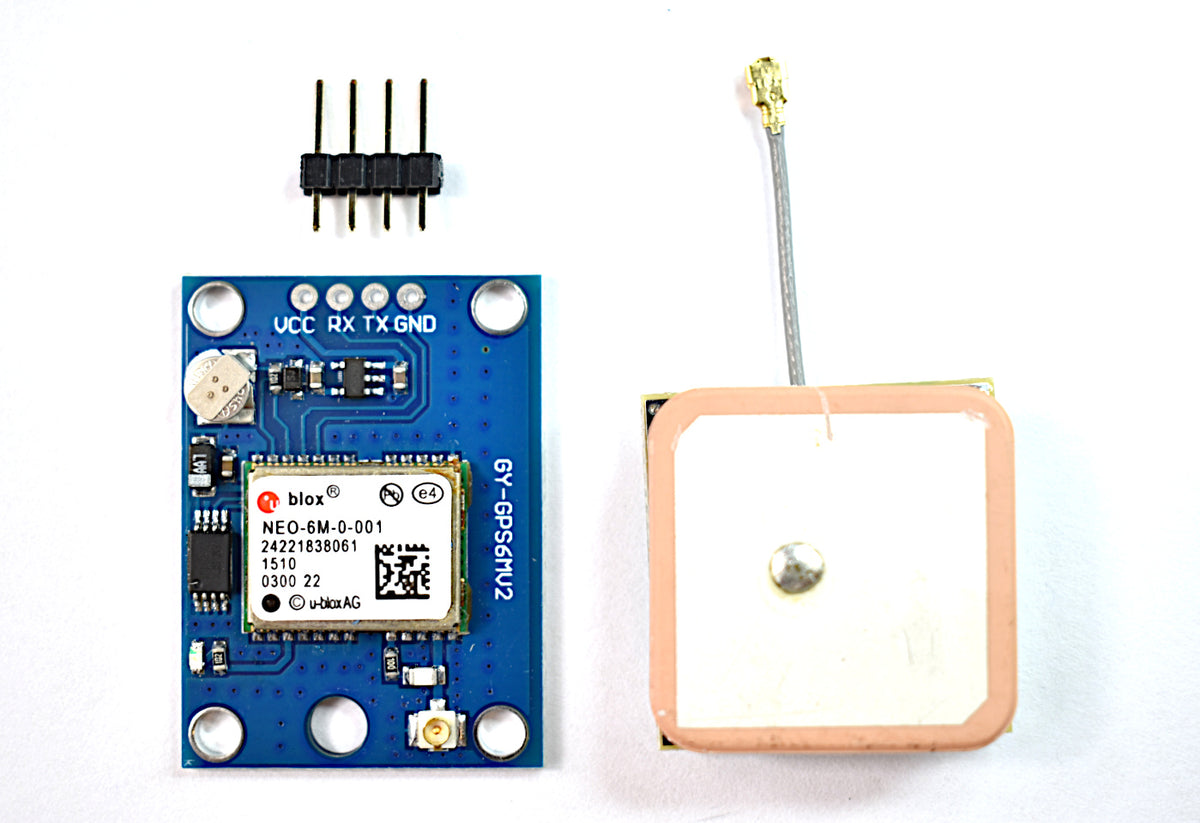

The u-blox NEO-6M GPS Module delivers precise position data via UART TTL interface. Includes a 25×25mm active patch antenna and onboard backup battery for fast GPS lock. Ideal for drones, flight controllers, and Arduino GPS projects.

Note: Not compatible with APM 2.8 Flight Controller.

Specifications:

• Main Chip: u-blox NEO-6M
• Input Voltage: 2.7–6V
• Channels: 50 (GPS L1, C/A code, SBAS: WAAS, EGNOS, MSAS)
• Navigation Update Rate: 5Hz
• Position Accuracy: 2m CEP
• Tracking Sensitivity: −161 dBm
• Cold/Warm Start Time: ~27s
• Max Speed: 500 m/s
• Baud Rate: 9600 default (configurable 4800–115200)
• Interface: UART TTL (TX, RX, VCC, GND)
• Antenna: 25×25mm active patch (built-in)
• Operating Temperature: −24 to +84°C

Applications:

• Drone and multirotor GPS navigation
• ArduPilot and flight controller GPS input
• Arduino GPS tracking and logging
• Position hold and waypoint navigation
