NRF24L01
Rs. 70.80
Skip to product information
NRF24L01
Rs. 70.80
Need a larger quantity? Get a bulk quote.

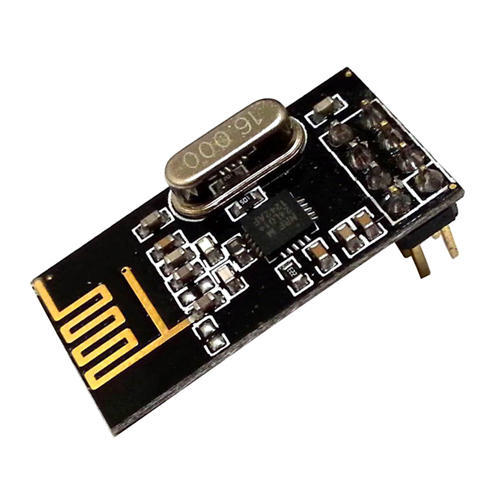

The NRF24L01 is a 2.4GHz single-chip RF transceiver with Enhanced ShockBurst™ protocol engine. SPI-configurable with internal FIFOs for smooth data flow. Supports 125 frequency channels, 6-pipe data reception, and auto-retransmit with acknowledgement. Ultra-low standby current makes it ideal for battery-powered wireless applications.
Specifications:
- Frequency: 2.400–2.4835GHz (ISM band)
- Air Data Rate: 1Mbps or 2Mbps (configurable)
- Output Power: 0 dBm (TX mode)
- TX Current: 9.0mA
- RX Current: 12.3mA
- Operating Voltage: 1.9–3.6V
- Interface: SPI
- Channels: 125
- RX Pipes: 6
- Dimensions: 15 × 29mm
- Onboard antenna
Applications:
- Wireless sensor networks and remote controls
- Two-way communication between Arduino/MCU boards
- Multi-point wireless communication systems
- Battery-powered IoT devices
