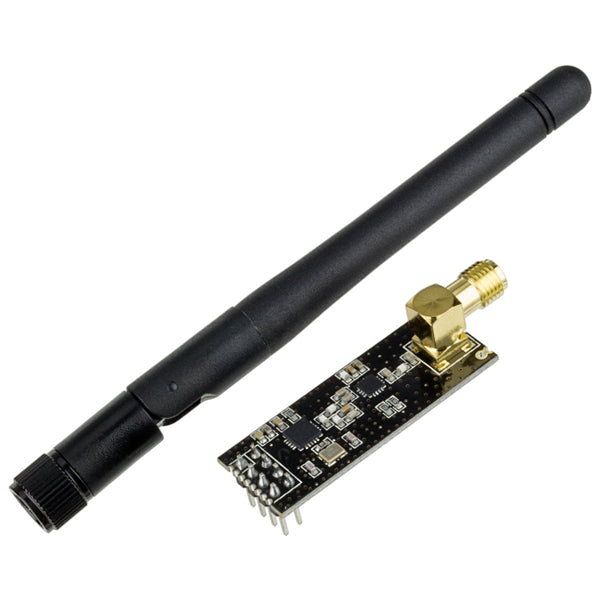

NRF24L01 WITH ANTENNA
Rs. 170.00
The NRF24L01+PA+LNA is a long-range 2.4GHz transceiver module with power amplifier (+20 dBm TX), low-noise amplifier (LNA), and external 2dBi SMA antenna. At 250Kbps in open air, communication range reaches 800–1000 metres. Software-compatible with standard NRF24L01 modules. Compatible with MCU, ARM, PIC, AVR, and STM32.
Specifications:
- Chip: nRF24L01+
- Frequency: 2.4GHz ISM band
- TX Power: +20 dBm (max)
- PA Gain: 20 dB
- LNA Gain: 10 dB
- LNA Noise Figure: 2.6 dB
- RX Sensitivity: −92 dBm @ 2Mbps / −95 dBm @ 1Mbps / −104 dBm @ 250kbps
- Operating Voltage: 3.0–3.5V
- Working Current: 115mA
- Standby Current: 4.2µA
- Communication Range: Up to 1km (open area)
- Antenna: External 2dBi SMA
- Channels: 125
- Operating Temperature: −20 to +70°C
Applications:
- Long-range wireless sensor networks
- Remote control systems requiring 500m+ range
- Industrial and outdoor wireless monitoring
- Multi-point communication with frequency hopping
