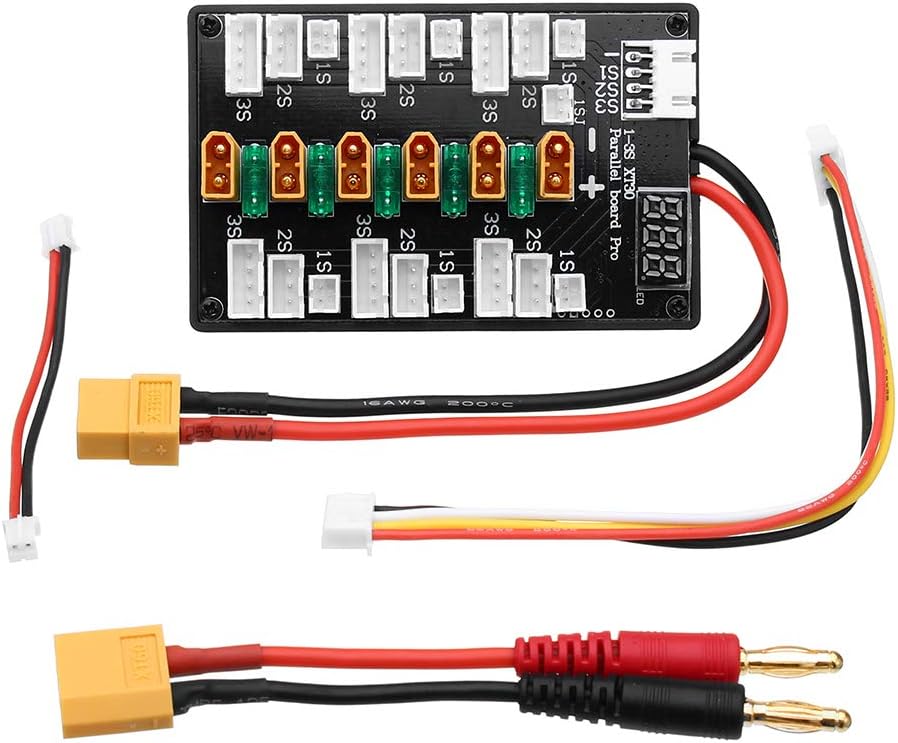

PARALLEL CHARGING BOARD
Rs. 708.00
Skip to product information
PARALLEL CHARGING BOARD
Rs. 708.00
Need a larger quantity? Get a bulk quote.
XT60 LiPo Parallel Charging Board for simultaneously charging multiple 2–6S LiPo batteries. Compatible with IMAX B6, Maxpro x612s, x6 plus, and UN-A6 balance chargers. 20oz thick copper foil supports up to 40A continuous charging current. Built-in short circuit protection prevents battery damage.
Specifications:
- Input Connector: 4mm Banana Connector
- Output Connector: XT60 (T Connector)
- Operating Voltage: 0–22.2V DC
- Max Charging Current: 40A
- Supported Cell Count: 2S–6S LiPo
- Short Circuit Protection: Yes
- PCB Copper Thickness: 20oz
- Compatible Chargers: IMAX B6, B6ac, B8, Maxpro x612s, x6 plus, UN-A6
Applications:
- Parallel charging of multiple drone LiPo packs
- Faster battery turnaround during RC flight sessions
- Quadcopter, FPV, and RC vehicle multi-battery charging
