STEPPER MOTOR
Rs. 108.80
Skip to product information
STEPPER MOTOR
Rs. 108.80

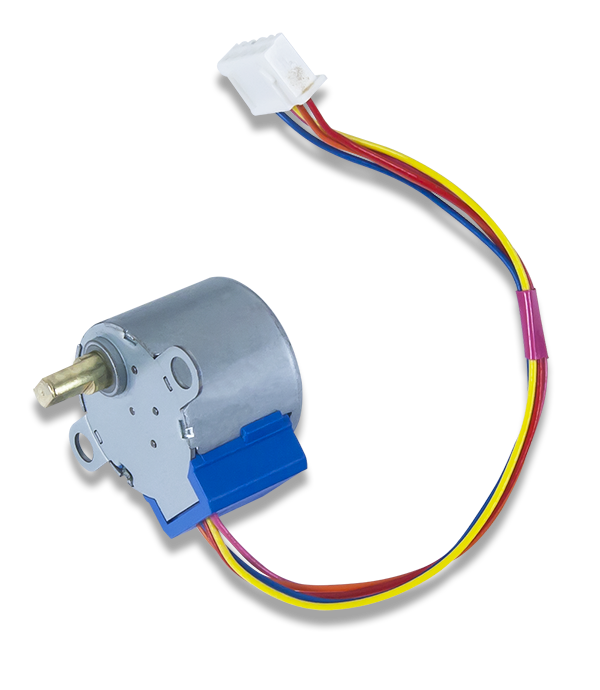

The 28BYJ-48 is a 5V unipolar geared stepper motor with 64:1 reduction ratio and 5-wire interface. Widely used in Arduino projects for its compact size, low cost, and stable positioning. Outputs ~15 RPM at rated voltage. Recommended to run in half-step mode (8-step sequence) for best performance. Requires ULN2003 driver board (sold separately).
Specifications:
- Operating Voltage: 5V DC
- Reduction Ratio: 64:1
- Step Angle: 5.625°/64 (half-step)
- Frequency: 100Hz
- Self-positioning Torque: >34.3mN·m
- Friction Torque: 600–1200 gf·cm
- Pull-in Torque: 300 gf·cm
- Wires: 5 (unipolar)
- Interface: Standard plug-in connector
Applications:
- Camera pan/tilt mechanisms
- Small robotics and automation projects
- Arduino-based position control experiments
- 3D printer and CNC auxiliary axes
