TB6560

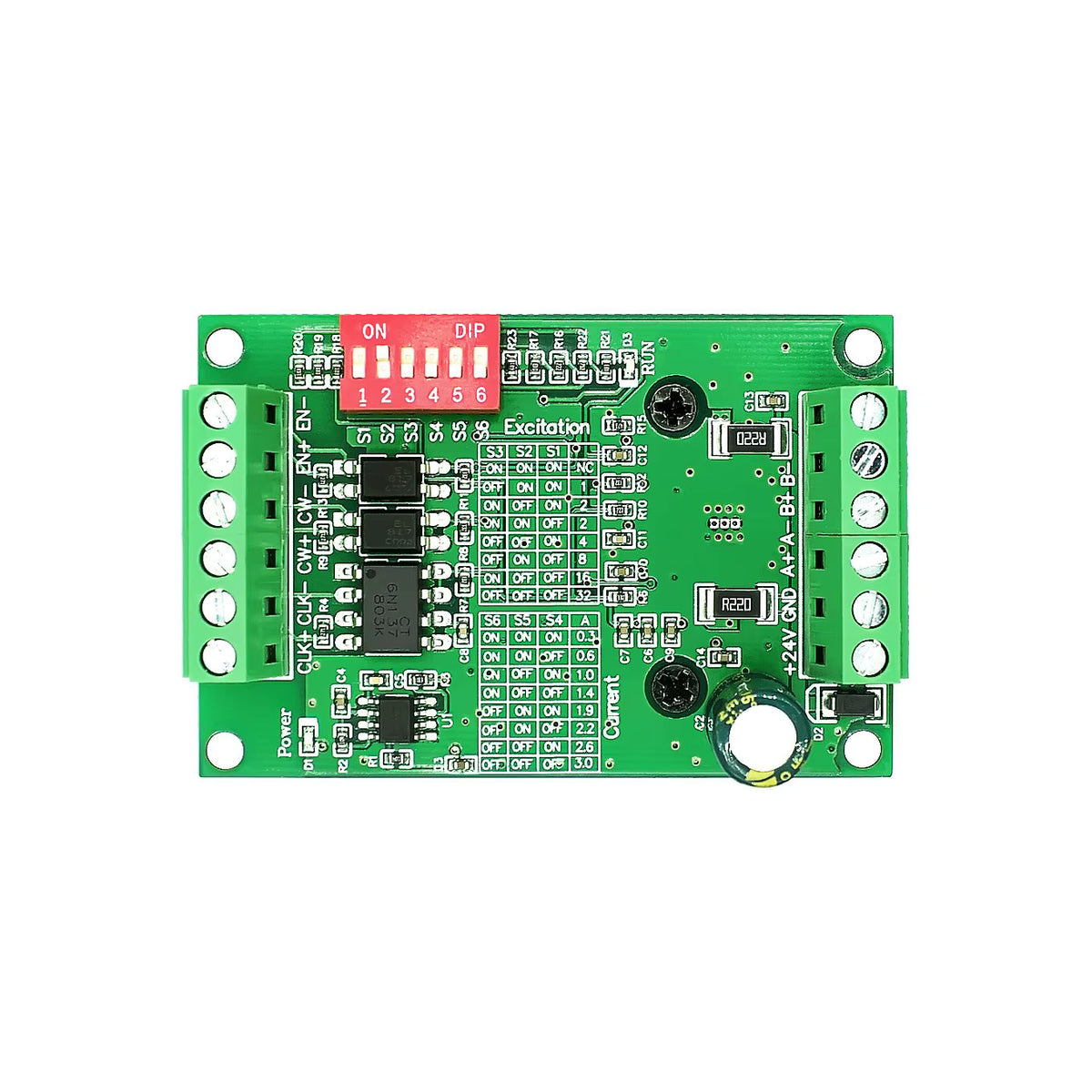

The TB6560 Single-Axis CNC Stepper Motor Driver Board uses the TB6560AHQ chip. Controls 2-phase stepper motors (42, 57, 86-type, 4-wire or 6-wire, up to 3A). Supports full, half, 1/8, and 1/16 microstep modes. 6N137 high-speed optocoupler isolation on input signals. Large heatsink for thermal management. Setup guide printed on the board. Not suitable for motors above 3A.

Specifications:

• IC: TB6560AHQ
• Input Voltage: 10–35V DC
• Max Output Current: 3A
• Microstep Modes: Full, Half, 1/8, 1/16
• Optocoupler: 6N137 high-speed
• Compatible Motors: 42, 57, 86-type 2/4-phase (2-wire, 4-wire, 6-wire)
• Protections: Low voltage shutdown, overheating stop, overcurrent
• Semi-flow: Automatic, adjustable
• Decay: Automatic half-decay

Applications:

• Single-axis CNC router and milling machine control
• Precision linear actuator positioning
• 3D printer axis control (X, Y, or Z)
