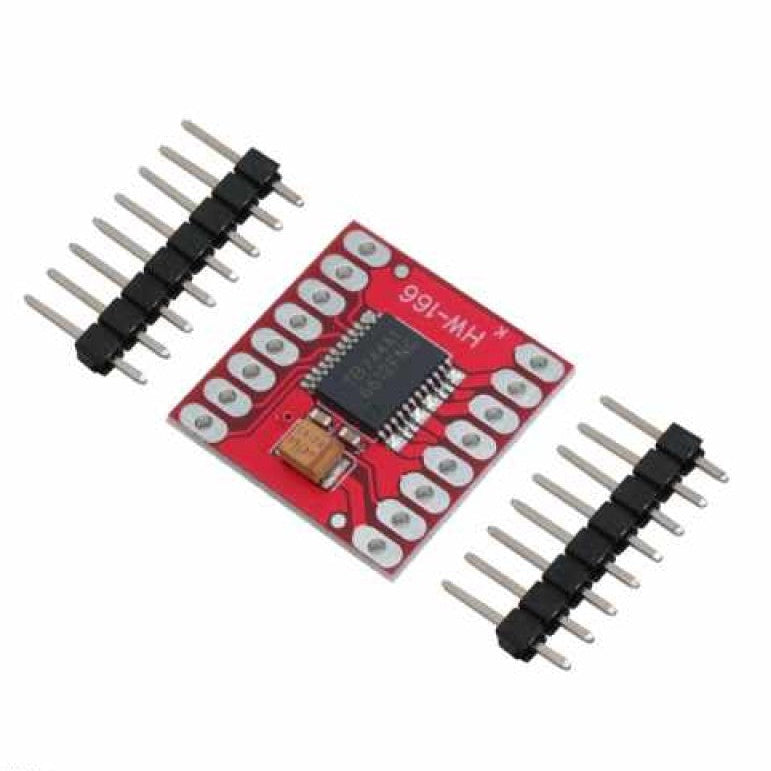

TB6612FNG Dual DC Stepper Motor Drive Controller
Rs. 129.80
Need a larger quantity? Get a bulk quote.
The TB6612FNG Dual Motor Driver Module controls up to 2 DC motors at 1.2A continuous (3.2A peak) per channel. Four control modes per channel: CW, CCW, short-brake, and stop. PWM speed control up to 100kHz. Onboard decoupling capacitors on both supply lines. All pins broken out on 0.1″ headers. Built-in thermal shutdown and low-voltage detection. STBY pin for power-saving standby.
Specifications:
- IC: TB6612FNG
- Logic Supply (VCC): 2.7–5.5V DC
- Motor Supply (VM): Up to 15V DC
- Continuous Output Current: 1.2A per channel
- Peak Output Current: 3.2A per channel
- PWM Frequency: Up to 100kHz
- Control Modes: CW / CCW / Short-brake / Stop
- Protections: Thermal shutdown, low voltage detection
- Header Pitch: 0.1″
Applications:
- Dual DC motor control for robotics and RC vehicles
- Arduino motor shield replacement (compact, efficient)
- Bipolar stepper motor driving
- Battery-powered motor control projects
