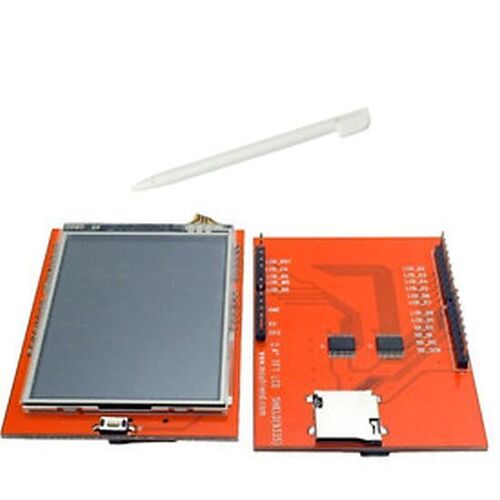

TFT DISPLAY 2.4 INCH
Rs. 460.20
Need a larger quantity? Get a bulk quote.
2.4" SPI TFT Colour Display Module with 240×320 resolution, ILI9341 driver IC, and onboard SD card slot (up to 2GB via hardware SPI). Only 5 wires needed for display control (CS, RS/DC, SCL, SDA, RST). Compatible with the UTFT library. Includes 3.3V backlight.
Pin Description:
- SDO — Serial data output
- LED — 3.3V backlight power
- SCL — Serial clock
- SDA/SDI — Serial data input
- DC — Data/Command select
- RST — Reset (active low)
- CS — Chip select (active low)
- GND — Ground
- VDD33 — 3.3V supply
Specifications:
- Display Size: 2.4 inch
- Resolution: 240 × 320
- Driver IC: ILI9341
- Interface: SPI (10-pin)
- Colour Depth: 262K / 65K
- Backlight: White
- SD Card: Up to 2GB (hardware SPI)
Applications:
- Graphical UI and data visualisation for Arduino/MCU projects
- Sensor dashboard displays
- Bitmap image rendering from SD card
