TFT DISPLAY 3.5 INCH FOR ARDUINO
Rs. 1,122.00

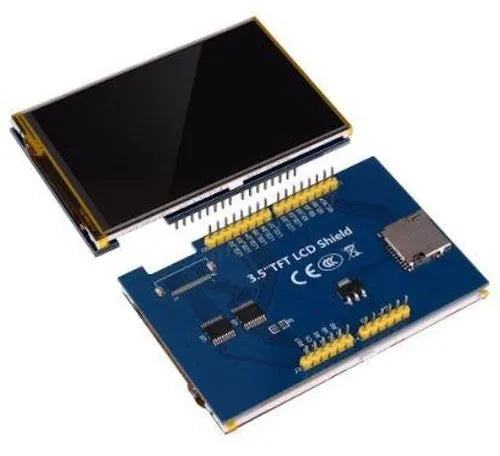

3.5" ILI9488 TFT Colour Touchscreen Display for Arduino. 480×320 resolution with 65K colours, resistive touch, and onboard SD card slot. 4-wire SPI interface minimises pin usage. Onboard RAM buffer (ILI9488) reduces MCU load for smooth rendering. Includes sample programs. Note: Logic IO is 3.3V TTL; use level shifter with 5V MCUs if needed.
Specifications:
- Display Size: 3.5 inch
- Resolution: 480 × 320
- Driver IC: ILI9488
- Colour Depth: RGB 65K
- Interface: 4-wire SPI
- Touch: Resistive
- SD Card: Yes (onboard slot)
- VCC: 3.3–5V
- Logic IO: 3.3V TTL
- Active Area: 48.96 × 73.44mm
- PCB Size: 56.34 × 98mm
- Operating Temperature: −20 to +60°C
Applications:
- Arduino graphical user interfaces
- IoT sensor dashboards
- Home automation touch panels
- Portable gaming consoles and embedded HMI
