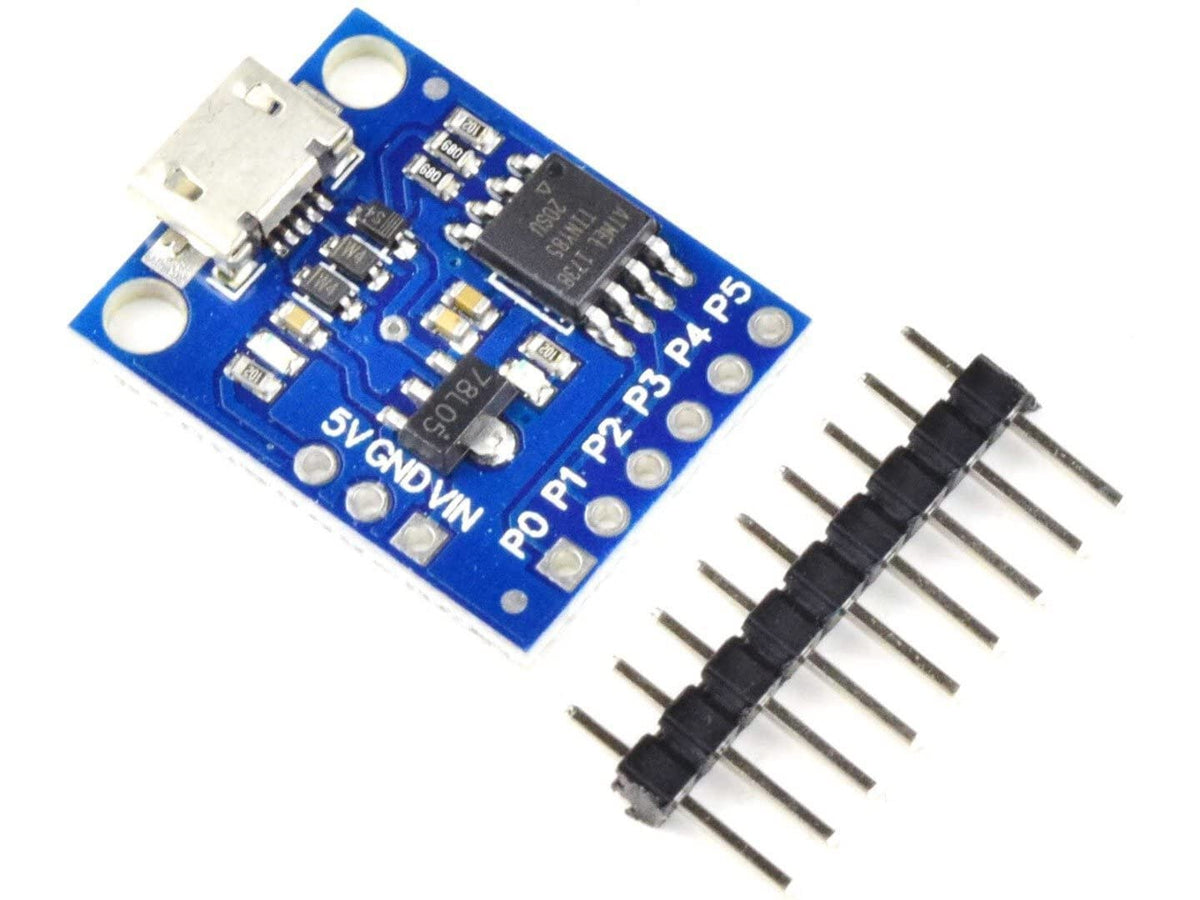

TINY85 MODULE
Rs. 258.40
The ATtiny85 Development Board is a compact, Arduino-compatible 8-pin MCU board with Micro USB, pre-loaded bootloader, and blink sketch. 6 digital I/O pins (4 ADC-capable), 3 PWM outputs, SPI/I2C/USART support, and 8KB Flash. Onboard 5V regulator accepts up to 12V input. USB lines protected by TVS diodes. Programmable via Arduino IDE.
Specifications:
- MCU: ATtiny85 (ATMEL AVR 8-bit)
- Flash: 8KB (10,000 write/erase cycles)
- EEPROM: 512 Bytes
- SRAM: 512 Bytes
- Digital I/O: 6 (4 ADC-capable)
- PWM Outputs: 3
- ADC: 10-bit, 4 single-ended channels
- Communication: USI (I2C, SPI, 1-wire)
- Speed: 0–10MHz @ 2.7–5.5V; 0–20MHz @ 4.5–5.5V
- Operating Voltage: 5V (regulator input up to 12V)
- USB: Micro USB (power + data), TVS-protected
- Active Mode Current: 300µA @ 1MHz, 1.8V
Applications:
- Compact IoT sensor nodes and data loggers
- Motor control and logic devices
- Wearable and space-constrained embedded projects
- USB HID devices (keyboard/mouse emulation)
