TTP223 RED
Rs. 6.80

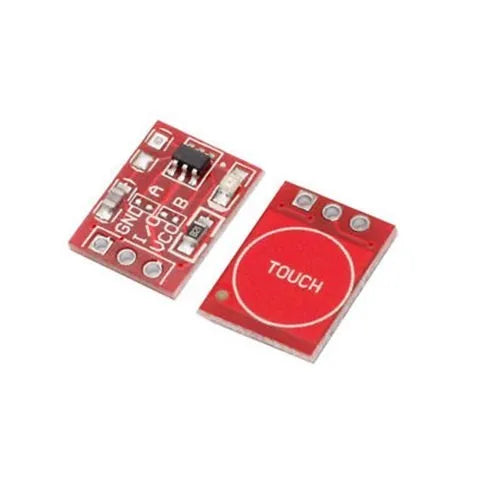

The TTP223 Touch Key Module (red) is a single-channel capacitive touch sensor IC module replicating a single tactile button. 11×10.5mm sensing area, ~5mm range. Output configurable via solder jumpers: momentary or latching, active-high or active-low. Onboard LED. Auto-calibration every ~4s. Allow ~0.5s stable time after power-on before touching.
Output Modes (AB jumpers):
- AB=00: No-lock High TTL
- AB=01: Self-lock High TTL
- AB=10: No-lock Low TTL
- AB=11: Self-lock Low TTL
Specifications:
- IC: TTP223
- Operating Voltage: 2–5.5V DC
- PCB Size: 15 × 11mm
- Response Time: ~60ms (Fast) / ~220ms (Low Power) @ 3V
- Sensitivity: Adjustable via capacitance (0–50pF)
- Max On-time: 100s (MOTB pad option)
- Calibration: Auto, ~4s period
Applications:
- Single-button replacement in compact electronics
- Touch-activated relay, LED, or buzzer control
- Latching or momentary input for Arduino projects
