TYN612 12A 600V SCR Thyristor (Min 5 Pcs)
Rs. 11.80
Skip to product information
TYN612 12A 600V SCR Thyristor (Min 5 Pcs)
Rs. 11.80
Need a larger quantity? Get a bulk quote.

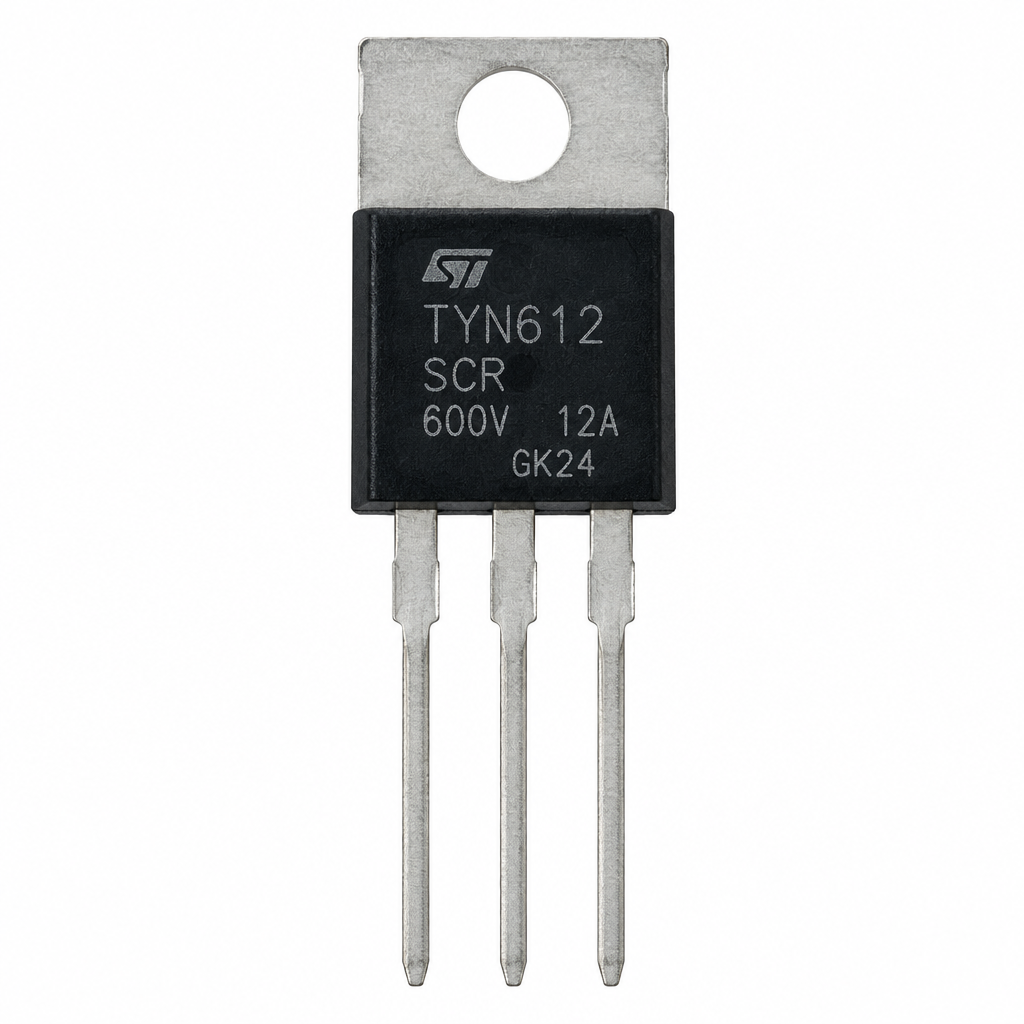

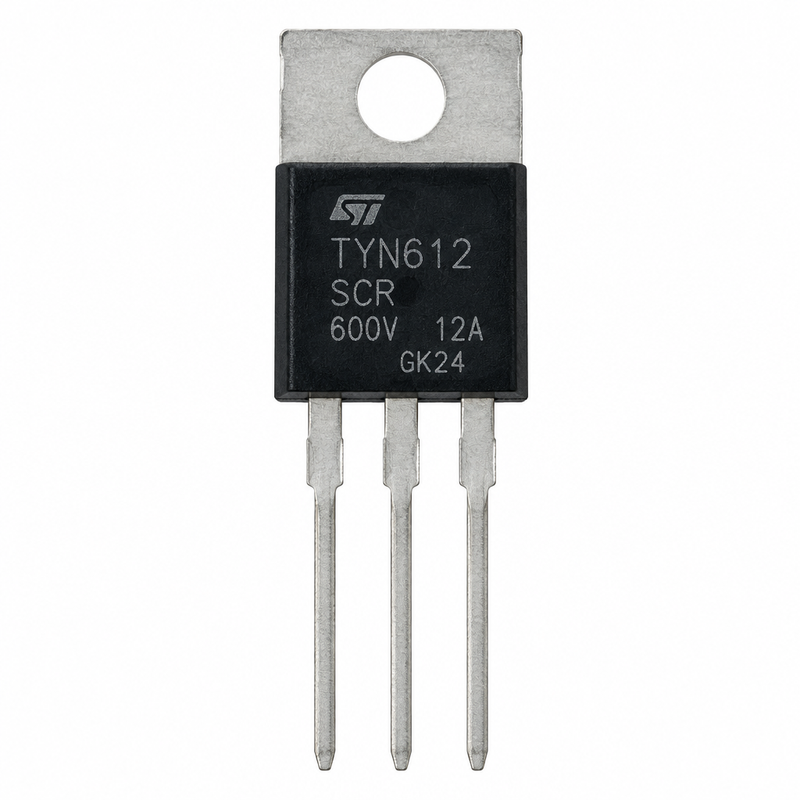

The TYN612 is a high-power SCR (Silicon Controlled Rectifier) thyristor in TO-220 package. Rated for 12A continuous current and 600V blocking voltage, suitable for AC power control and motor drive applications. Sold in a minimum of 5 pieces.
Specifications
- Type: SCR (Thyristor)
- Repetitive Peak Off-State Voltage (VDRM): 600V
- RMS On-State Current (IT): 12A
- Gate Trigger Current (IGT): 15mA (typical)
- Holding Current (IH): 30mA (typical)
- Package: TO-220
Applications
AC power control, light dimmer circuits, motor speed control, heater control, soft-start circuits, battery chargers, crowbar protection.
