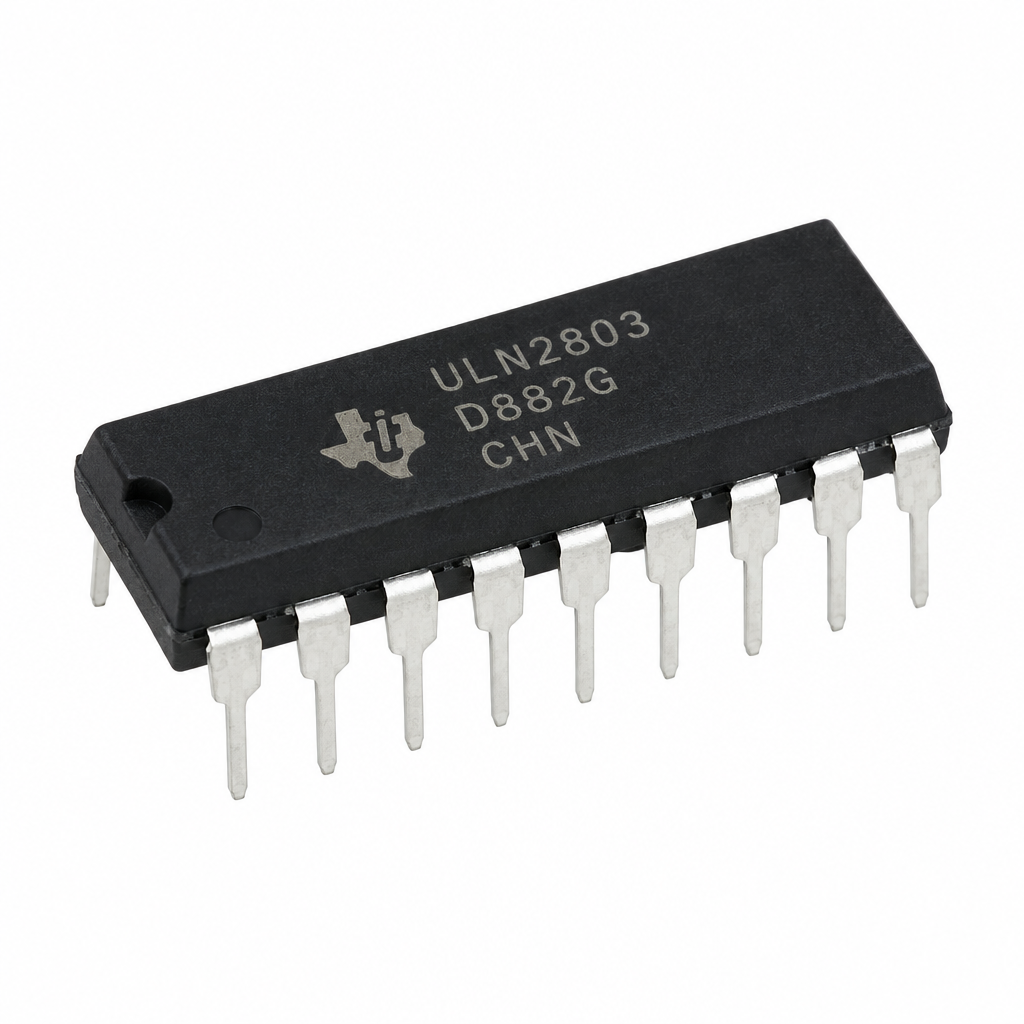

ULN2803 8-Channel Darlington Transistor Array IC DIP-18 (Min 5 Pcs)

The ULN2803 is an 8-channel NPN Darlington transistor array in DIP-18 package — the 8-channel big brother to the ULN2003. Each channel sinks up to 500mA at 50V with built-in flyback diodes, and the pinout is optimized for direct interfacing with 8-bit microcontrollers and port expanders. Sold in a minimum of 5 pieces.

Specifications

• Type: 8-Channel NPN Darlington Array
• Output Voltage (max): 50V
• Output Current (per channel): 500mA
• Input Voltage: Compatible with 5V TTL/CMOS logic
• Flyback Diodes: Built-in (suppression diodes)
• Package: DIP-18

Applications

8-bit port relay driver, stepper motor driver, solenoid array, LED matrix row/column driver, Arduino/8051 full-port high-current driver, printer head driver, lamp array controller.
