W1219 12V DIGITAL DISPLAY TEMPERATURE CONTROLLER MODULE
Rs. 217.60
Skip to product information
W1219 12V DIGITAL DISPLAY TEMPERATURE CONTROLLER MODULE
Rs. 217.60

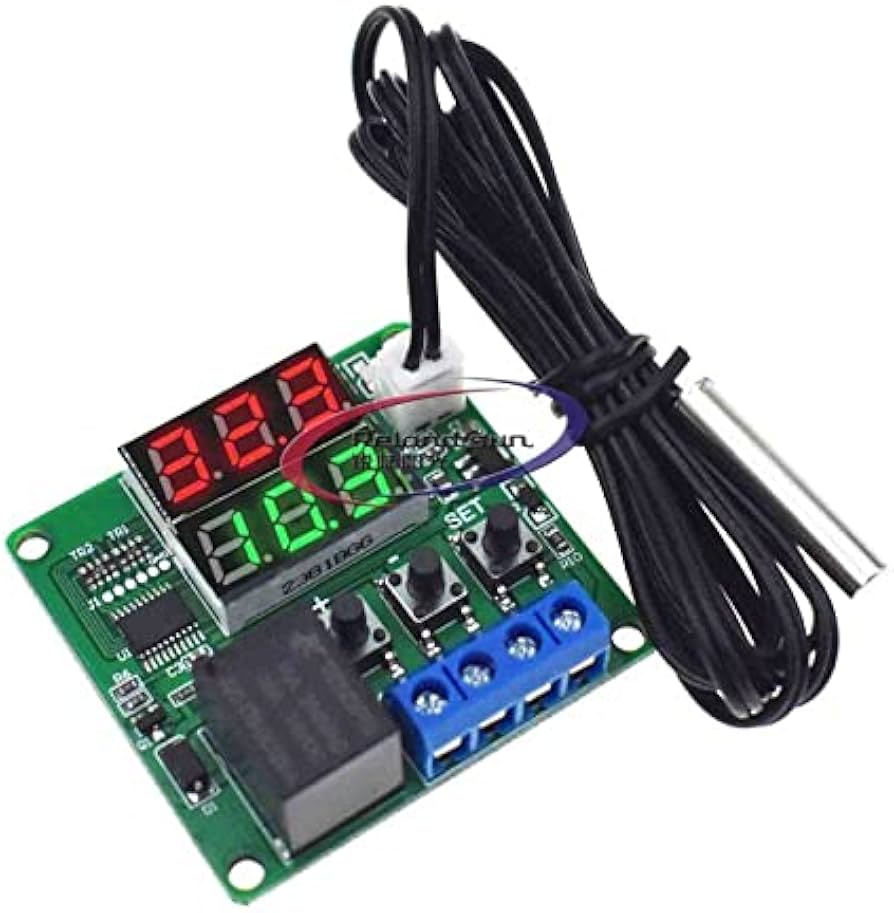

The XH-W1219 is a 12V dual-display (red + green LED) digital thermostat module with waterproof NTC10K probe. Relay output for heating or cooling control. Control range: −50°C to +110°C. Based on a Nuvoton MCU. 5 configurable parameters via keypad.
Parameter Settings:
- P0 — Control Mode: Heating (H) or Cooling (C)
- P1 — Return difference (hysteresis)
- P2 — Temperature calibration offset
- P3 — Compressor start delay
- P4 — High-temperature alarm (screen flashes + alarm when exceeded)
Specifications:
- Model: XH-W1219
- Supply Voltage: 12V DC
- Sensor: NTC10K (waterproof probe)
- Control Range: −50 to +110°C
- Calibration Range: −10 to +10°C
- High-Temp Alarm Range: −49 to +110°C
- Relay Output: Max 10A
- Display: Dual red + green LED
Applications:
- Heating and cooling automation
- Refrigeration compressor control
- Incubator and greenhouse temperature management
- High-temperature alarm systems
