DUST SENSOR
Rs. 383.50
Need a larger quantity? Get a bulk quote.

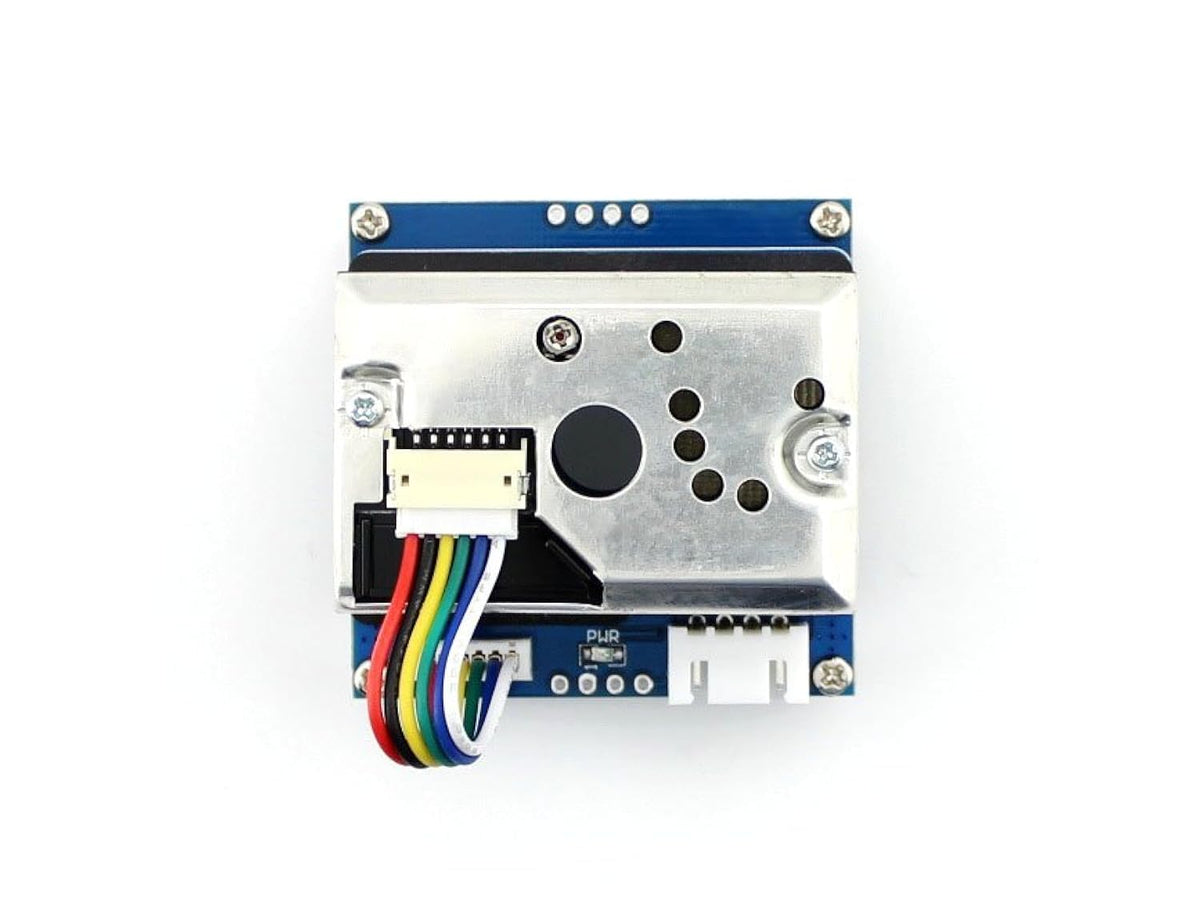

The GP2Y1010AU0F is a compact optical air quality sensor that detects fine dust particles, smoke, and particulate matter in the air. Uses an infrared LED and phototransistor to detect reflected light from particles. Particularly effective for cigarette smoke detection and can distinguish smoke from house dust via output pulse pattern. Analog voltage output proportional to dust density.
Features:
- Detects fine particles including cigarette smoke
- Distinguishes smoke from house dust via pulse pattern
- Analog voltage output: 0.5V per 0.1mg/m³
- Low current consumption: 11mA typical, 20mA max
- Lead-free and RoHS compliant
Specifications:
- Model: GP2Y1010AU0F
- Supply Voltage: up to 7VDC
- Operating Current: 20mA max
- Sensitivity: 0.5V / 0.1mg/m³
- Operating Temperature: -10 to +60°C
- Dimensions: 46.0 × 30.0 × 17.6mm
Applications:
- Air purifiers and quality monitors
- Smoke detectors
- HVAC and ventilation systems
