I2C MODULE
Rs. 47.20
Need a larger quantity? Get a bulk quote.

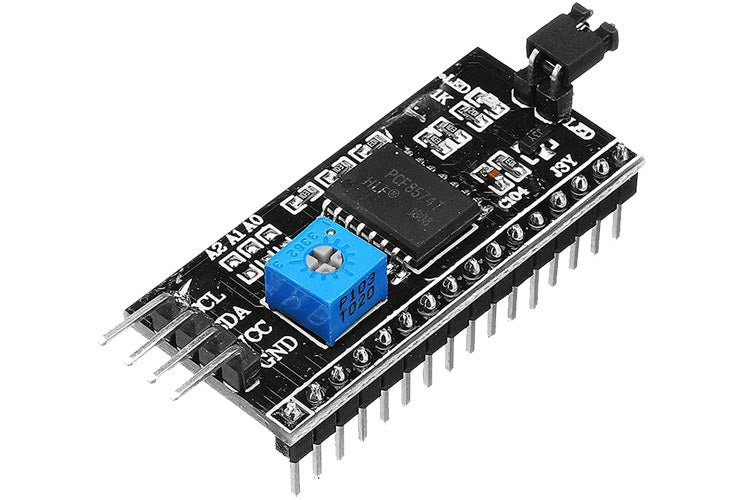

The IIC/I2C Serial Interface Adapter Module (PCF8574) converts I2C serial data to parallel for controlling 16×2 and 20×4 character LCD displays with just 2 wires (SDA + SCL). Reduces LCD wiring from 8 pins to 2. Default I2C address 0x3F, adjustable via 3 solder jumpers. Onboard potentiometer for contrast control and jumper for backlight enable/disable. RoHS-compliant.
Features:
- Chip: PCF8574 I2C I/O expander
- Compatible: 16×2 and 20×4 LCD displays (4-bit mode)
- Default I2C Address: 0x3F (adjustable via solder jumpers)
- Supports up to 3 LCDs on a single I2C bus
- Backlight: jumper controlled
- Contrast: onboard potentiometer
- RoHS-compliant
Pinout:
- GND, VCC, SDA, SCL
Applications:
- Arduino and MCU LCD display projects
- Robotics and automation HMI displays
- DIY electronics with minimal wiring
